The Brief

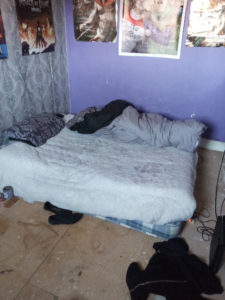

We were called to a three bedroom end of terrace property in Aylesbury to assess a bedroom following a recent leak from the adjoining bathroom. The leak happened quite some time prior to our visit and we were advised that no drying was ever carried out following the leak. As a result, extensive mould growth has occurred in the bedroom, affecting the ceiling and walls.
The family home in Buckinghamshire was built in the mid-1900s. The external walls are built from brick, with a cavity between the internal and external walls. All internal walls have been finished with plaster, and the ceilings are made from plasterboard fixed to wooden joists above. The first floor consists of wooden joists and T&R chipboard panels.
The Objective
Upon our arrival, we took atmospheric readings of the internal environment. These readings help us to evaluate several things, including whether there is a risk of secondary damage to hygroscopic materials (eg. wood and plasterboard) due to high levels of moisture in the air. Hygroscopic materials can absorb water vapour from the air, increasing the amount of water they’re holding at a given time. As such, this can lead to further issues, including microbial (most commonly mould) growth.
The readings we received were as follows:
| Area | Relative Humidity | Temperature | Dewpoint | Vapour Pressure | Specific Humidity |
|---|---|---|---|---|---|
| Internal | 77.9% | 14.6°C | 10.8°C | 1.27kPa | 8.00g/kg |
| Between the subfloor void within the bathroom | 68.1% | 10.5°C | 4.8°C | 0.86kPa | 5.34g/kg |

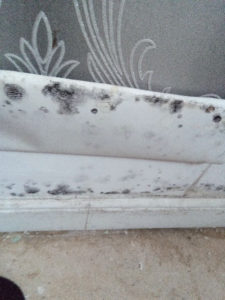

The floor covering in the bedroom had been removed prior to our arrival, exposing visibly stained chipboard flooring. We also noticed mould growth in multiple places across the walls and ceilings. However, on our initial visit, moisture readings were at acceptable levels.
The internal walls recorded at an average of 180 REL, the ceiling at 150 REL, and the floor at 14% WME. A general review of the property pointed to high internal atmospheric moisture levels as the main driver for the reported issue of mould growth.
In fact, calculations based on BS 5250:2002 code of practice for the control of condensation in buildings showed the moisture levels in the property to suggest a “wet occupancy”, the definition of which is as follows:
Wet Occupancy:
Ventilation is hardly ever used; high moisture generation; probably a family with young children; water vapour pressure excess is greater than 0.6kPa.
The Technical Part
The main driver which allows mould to develop and grow in and on materials within a structure is moisture. And more specifically, water activity.
Materials can become damp in a number of ways; directly being wetted, moisture penetrating materials through capillary action, physical contact, and hygroscopic materials absorbing moisture directly from the atmosphere.
There are many hundreds of mould varieties, each requiring different levels of water activity to develop and grow. The lowest known level of water activity at which mould can grow is 0.61. In general, this level translates to 60% relative humidity (normal range is around 40%).
Condensation doesn’t have to form on a surface. For there to be sufficient moisture to allow for mould to establish at the point where condensation occurs, the relative humidity would have to be 100%. In most situations where surface condensation occurs or relative humidity of the internal atmosphere exceeds 70% for an extended period, mould will establish and grow.
Mould is an opportunist and once established in a property, will quickly colonise in areas with appropriate conditions. Most properties, through their normal occupational cycle, will have periods of high occupational moisture. However, it is prolonged periods of elevated moisture which allows mould to grow. And once mould is present in a structure, the period of time it takes to colonise new areas is reduced due to increased levels of spores being produced in an enclosed environment.
A general review of the end of terrace property in Aylesbury pointed to high internal atmospheric moisture levels as the main driver for the mould growth in the first floor bedroom. The condensation and control of atmospheric moisture was a priority and could be achieved by ensuring the following points were carried out as they would optimise the internal atmospheric conditions:
- The usage of heating to maintain an adequate and even internal air temperature
- The usage of extractor fans when cooking, showering, and bathing
- Ensuring that areas of moisture production (eg. the bathroom) are kept closed from the general environment until extraction systems have reduced excessive atmospheric moisture
- To try not to dry laundry indoors, but if needs be, to ensure good ventilation by opening windows. Preferably, dry a small volume of clothes in the bathroom with the door closed and extractor on.
- Ensure the usage of trickle vents and window ventilation
In the interim, to help with the current mould growth, we completed our multi-stage mould remediation process, however, if the above steps are not followed, there is a high chance that the mould will quickly return.
Firstly, the affected areas were sealed off to prevent mould spores from spreading to previously unaffected rooms. A negative pressure system was installed for the duration of our work to help protect from cross-contamination and remove contaminants from the air.
Negative pressure is created in the abatement enclosure, or in some instances larger areas, by using negative pressure fans. These draw contaminated air or airborne particulates through polythene ducting, venting them into the air outside the building.
All affected walls were stripped of wallpaper to expose the mould and facilitate the mould remediation process. All mould-infected surfaces were cleaned and sanitised before the areas were ULV (ultra-low volume) fogged using Decon 7—a gentle decontaminate which is capable of killing 99.99999% of all viruses, bacteria, and mould.
